Out of stock
The Portable Power Station BLUETTI AC50B – 700W 448Wh features 448Wh capacity and 700W high power output, ensuring you have ample energy to run essentials. The advanced AI-BMS intelligent optimizes energy consumption, maximizing runtime and efficiency.
BATTERY INFO | |
---|---|
Capacity | 448Wh |
Type | LiFePO₄ (Lithium Iron Phosphate) |
Life Cycles | 3,000+ Cycles to 80% Original Capacity |
Shelf-life | Recharge to 40%-60% Every 3-6 Months |
Management System | MPPT Controller, BMS, etc. |
OUTPUT | |
Lifting Power | 1000W |
AC Outlet x 2 | 700W in total |
USB-C x 2 | 65W, 5 / 9 / 12 / 15 / 20V, 3A; 20V / 3.25A |
USB-A x 1 | 15W, 5V / 3A |
Cigarette Lighter Port x 1 | 120W, 12V / 10A |
INPUT | |
AC Input | 580W Max. |
Solar Input | 200W Max., VOC 12-28V, 8.5A Max. |
RECHARGE TIMES | |
AC Charging | 45 Mins (80%); 70 Mins (100%) |
Solar Charging | 2.7 Hours (100%) |
Car Outlet | 4.9 Hours (12V) / 2.7 Hours (24V) |
GENERAL | |
Pass-through Charging | Yes |
UPS Switching Time | ≤20ms |
Charging Temperature | 0°C to 40°C / 32°F to 104°F |
Discharging Temperature | -20°C to 40°C / -4°F to 104°F |
Storage Temperature | -20°C to 40°C / -4°F to 104°F |
Weight | 6.7 kg / 14.8 lbs |
Dimensions (L x W x D) | 28 x 20 x 22 cm / 11.0 x 7.9 x 8.7 in |
Warranty | 5 Years |
AC50B powers appliances up to 700W. The power lifting mode supports pure resistance devices like kettles and irons under 1000W load capacity.
Operation time = Battery Capacity (448Wh) x DoD x η / (Load Power + 10W Self-consumption)
Depth of discharge: DoD = 90%
Inverter conversion efficiency: η = 85%
For example, if I need to charge a 20W light bulb, the operating time = 448*90%*85%/(20+10) = 11.4 hours
The following conditions need to be met:
1. Features MC4 interface.
2. Voltage range is within AC50B open circuit voltage (OCV) of 12-28V. We recommend 1 × BLUETTI PV120 / PV200.
The AC inverter, DC regulator, or LCD screen will consume a certain amount of power under standby mode, so please long press the AC/DC Power Button to shut down the unit completely when not in use.
Currently, the AC50B supports capacity expansion with B80 battery in Power Bank Mode. To connect B80 battery, you'll need the Aviation to XT60 cable.

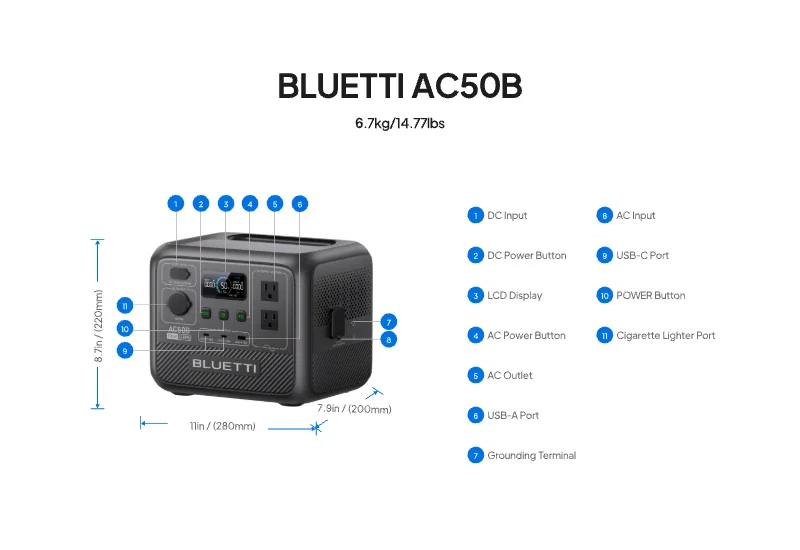

Dimensions | 11" (w) x 7.9" (d) x 8.7" (h) |
---|---|
Weight | 14.77 lbs |
